GTS 16C

HIGH-PERFORMANCE FLYABLE CARDIOID SUBWOOFER

137 dB max SPL

16” neodymium woofer

14” neodymium rear woofer

GTX 7C compatible suspension fittings

2 Side Handles

Durable plywood enclosure, polyurea coating

2 x SpeakON STXX IP54 heavy-duty metal connectors

Designed to operate with XPS 16K amplifier (6 subs per amp unit)

NEW

PRELIMINARY

GTS 16C

HIGH-PERFORMANCE FLYABLE CARDIOID SUBWOOFER

137 dB max SPL

16” neodymium woofer

14” neodymium rear woofer

GTX 7C compatible suspension fittings

2 Side Handles

Durable plywood enclosure, polyurea coating

2 x SpeakON STXX IP54 heavy-duty metal connectors

Designed to operate with XPS 16K amplifier (6 subs per amp unit)

NEW

PRELIMINARY

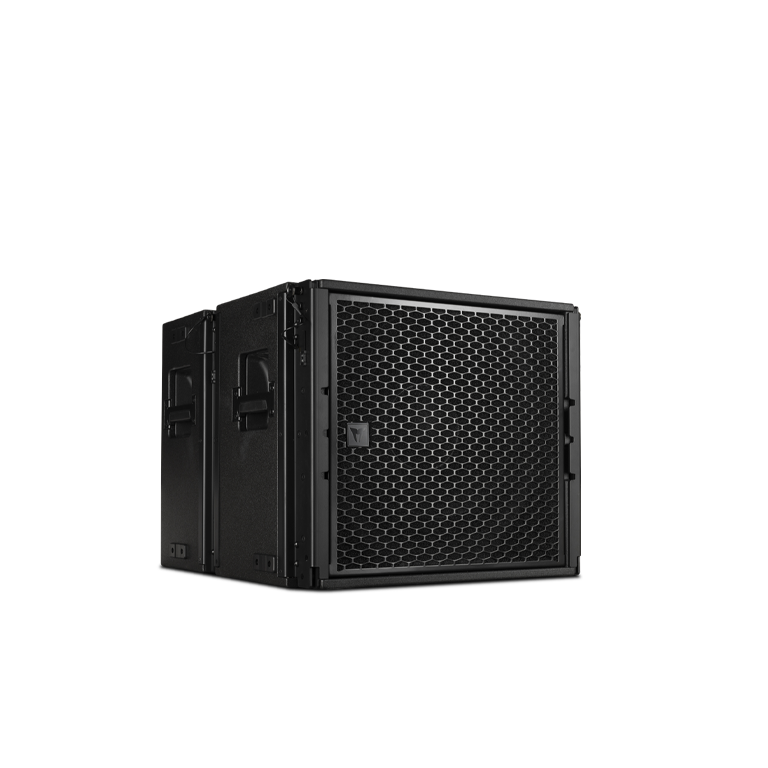

The GTS 16C is a high-performance flyable cardioid subwoofer, ideal for installations demanding impactful low-frequency performance with controlled dispersion. Built with a high-quality plywood cabinet, it features a 16” neodymium front woofer and a 14” neodymium rear woofer. With integrated suspension hardware, the GTS 16C can be quickly flown or stacked. Equipped with two SpeakON STXX Series 4-pole IP54 heavy-duty metal connectors and capable of cascading up to three modules per XPS 16K channel, it provides reliable and powerful low-frequency output for professional environments.

DIRECTIONAL SUBWOOFER

Low frequencies are naturally omnidirectional, which can lead to unwanted energy buildup on stage, excessive reverberation in enclosed spaces, or noise pollution in open-air environments. A cardioid subwoofer, whether ground-stacked or flown, solves these issues by focusing bass energy towards the audience while significantly reducing rearward sound emissions. This targeted dispersion enhances clarity, improves low-frequency impact, and minimizes interference with microphones and stage monitors. By implementing active cardioid technology provided by TT+ Audio DSP processing, the GTS 16C delivers controlled, high-output bass exactly where it’s needed.

ACTIVE CARDIOID TECHNOLOGY

While the physical configuration of woofers in traditional cardioid designs provides basic rear sound cancellation, it is often constrained by specific frequency limitations and relies on a passive approach—using a single or pair of transducers driven from the same audio channel.

In contrast, TT+ Audio’s active cardioid systems feature independently driven front and rear speakers with extensive DSP capabilities. This active configuration provides several key advantages:

Ideal Primary Cardioid Attenuation
Because front and rear transducers are driven separately, speaker placement can be optimized to achieve the best possible acoustic cardioid cancellation.

Precise Rear Wave Rejection
Speakers are digitally and dynamically aligned to perfectly cancel rear wave propagation, achieving up to 30 dB front-to-rear rejection levels.

Independent Limiters and Protections
This ensures maximum output with minimal distortion and allows each driver to operate at its optimal performance level.

Wider Frequency Range of Cardioid Radiation
By adopting FiRPHASE technology, the cardioid effect is extended across a wider frequency range while achieving 0º linear phase response.

PRECISION TRANSDUCERS

At TT+ AUDIO, we maintain full control over the design, engineering, and manufacturing of each component, subjecting them to rigorous testing—including 200 hours of continuous musical signals under extreme conditions.

TT+ Audio adopts large format compression drivers for the HF of our products, engineered to withstand lower crossover points than our competitors. This approach offers several advantages:

The overall efficiency of the system is improved, resulting in higher maximum SPL.
The range controlled by the horn directivity is extended.
Clearer vocal reproduction due to the crossover point.
Rear attenuation is improved and distorsion at MF is reduced.

POLYUREA COATING ADVANTAGES

All TT+ AUDIO enclosures are finished with a highly durable polyurea coating that provides excellent waterproofing and corrosion protection and withstands abrasion, impacts, and mechanical stress. Its extreme elasticity maintains flexibility even in low temperatures - perfect for enclosures prone to vibrations such as high-power subwoofers. It also exhibits strong chemical resistance and does not emit any VOCs (volatile organic compounds), making it environmentally friendly and safe for human health.

ENCLOSURE AND RIGGING

Housed in a high quality plywood, polyurea-coated enclosure, the GTS 16C features two SpeakON STXX Series 4-pole IP54 heavy-duty metal connectors. It supports cascading up to six modules with one XPS 16K amplifier unit. Designed for unparalleled adaptability, it excels in acoustically challenging environments. Featuring optimized hardware for suspension, two aluminum handles per side with rubber handgrips ensure easy handling.

GTX 7C compatible suspension fittings

DOWNLOAD BROCHURE

Part number

13000915
GTS 16C
Black

Acoustical specifications

Frequency Response (-10dB)

25 Hz - 200 Hz

Max SPL @ 1m

137 dB

Power section

Amplification

Full Range

Nominal Impedance LF

8 ohm

Nominal Impedance LF Rear (ohm)

8 ohm

Recommended Amplifiers

XPS 16KD

Transducers

Woofer

1 x 16'' neo, 4.0'' v.c

Rear Woofer

1 x 14'' neo, 4.0'' v.c

Input/Output section

Input connectors

Speakon® NL4

Output connectors

Speakon® NL4

Standard compliance

Safety agency

CE compliant

Physical specifications

Cabinet/Case Material

Birch plywood

Hardware

Suspension Fittings

Handles

2 x side

Pole mount/Cap

M20 thread

Grille

Steel with clothing

Color

Black

Size / Weight

Height

537 mm / 21.14 inches

Width

605 mm / 23.82 inches

Depth

777.5 mm / 30.61 inches

Weight

62 kg / 136.69 lbs

Shipping information

Package Height

592 mm / 23.31 inches

Package Width

842 mm / 33.15 inches

Package Depth

644 mm / 25.35 inches

Package Weight

67 kg / 147.71 lbs
