TTR 16KD-1 EU
TOURING RACK
P-COM connector paralled with NL4 and NL2 SpeakON speaker connectors on front panel
XLR-F Input connectors on front panel
AC INPUT for EU (220-240V) on front panel
Control and Dante EtherCON connectors on front panel
3 RU durable Flight Case

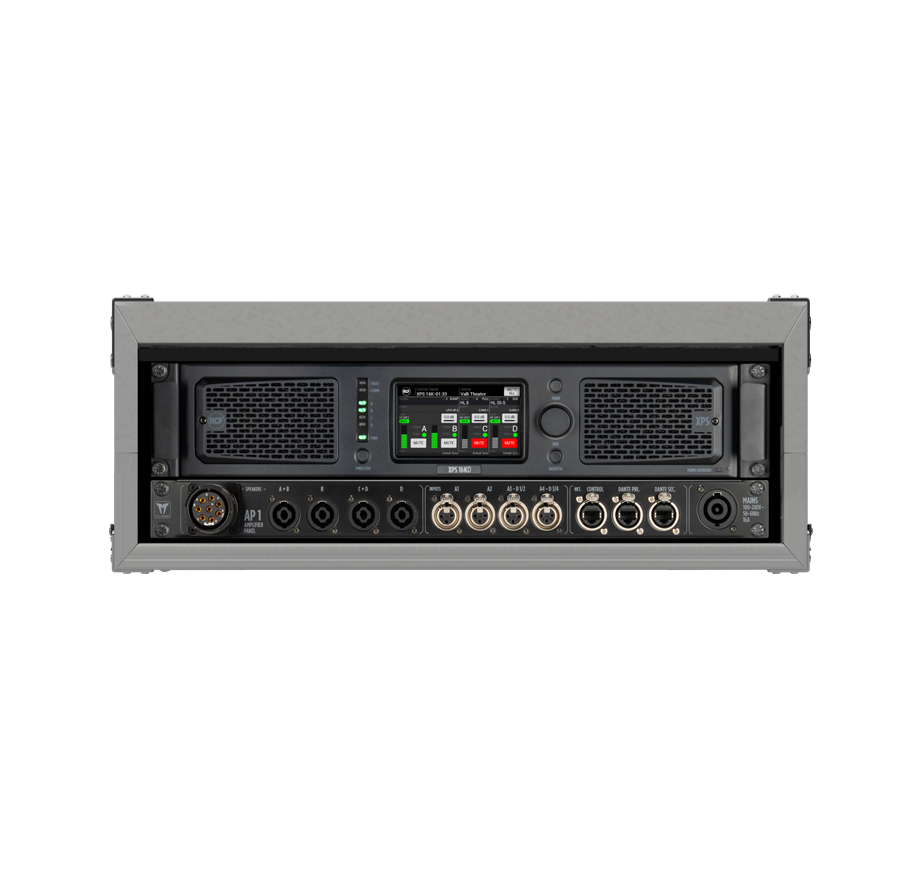

TTR 16KD-1 Rack is a rugged flight case, designed to house the essential electronics required to power TT+ GTX and GTS line array and subwoofer systems. The 3U Rack features an internal suspended cage, sliding doors, and two handles on each side for enhanced mobility and accessibility. Designed for touring and installed sound applications, this rack ensures secure equipment mounting, efficient AP1 panel for easy and reliable cabling of the included XPS 16KD (Dante version) power amplifier. All components are pre-wired for immediate “plug and play” operation, ensuring a streamlined setup and reliable performance in demanding audio environments.
ONE-OF-A-KIND AMPLIFICATION RACK
EASY-TO-CONFIGURE, ALL-IN-ONE SOLUTION
The TTR 16K from TT+ AUDIO is an all-in-one solution that simplifies the setup process for your event. With pre-engineered components specifically designed, the TTR 16K provides a turnkey amplification package. No assembly required. This frees up your technical team to focus on other important setup tasks.
The system features AC power inputs and outputs, rugged S-COM and P-COM multipole connectors for signal and power, network switches for Dante audio transport and control network, and an easy-to-access XLR and AES/EBU patch-bay for rapid routing.
The rack design also optimizes air ventilation between devices.
The rack design also optimizes air ventilation between devices.
XPS 16KD
XPS 16KD provides extreme power density with 4 x 4000 W continuous power outputs in 2 RU space for both touring and installed sound systems. The unit features 4 analog and digital AES/EBU inputs/outputs, a Dante Network, RDNet control, and complete signal processing, tuning, and routing capability all at 96 kHz. Redundancy and full scalability are granted by the advanced and modular design of the circuitry. A complete set of TT+ Audio speaker presets is available, with powerful signal processing for complete system tuning.
AP1
The AP1 rack panel is specifically designed to efficiently connect a single amplifier inside a dedicated 3-unit rack, ensuring all necessary signal, power, and speaker connections are easily accessible and organized within this form factor. This setup provides a streamlined and professional solution for managing complex audio systems while saving space and maintaining a clean installation in professional environments.
TT+ AUDIO products are continually improved. All specifications are therefore subject to change without notice.
