XPS 16K

FOUR CHANNELS DSP AMPLIFIER

16000 W Total Continuous Power

40-bit Floating-point Processing, up to 96 kHz

32-bit Fixed-point Internal Routing

FiRPHASE, Bass Motion Control, Bass Shaper

RDNet Networked Management

Touch 4.3" Color TFT Interface

Full On-board Processing with Delay, EQ, Comp/Limiter

On-board Speaker Presets Library

XPS 16K

FOUR CHANNELS DSP AMPLIFIER

16000 W Total Continuous Power

40-bit Floating-point Processing, up to 96 kHz

32-bit Fixed-point Internal Routing

FiRPHASE, Bass Motion Control, Bass Shaper

RDNet Networked Management

Touch 4.3" Color TFT Interface

Full On-board Processing with Delay, EQ, Comp/Limiter

On-board Speaker Presets Library

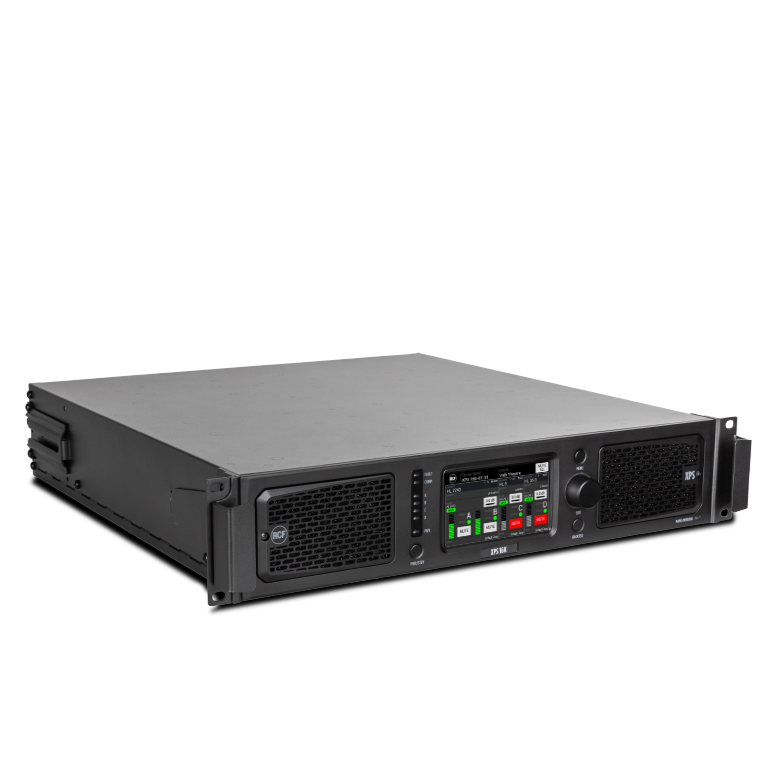

XPS 16K is a four-channel power amplifier with advanced processing and analog/digital routing options for both touring and install use. With 4x4000 W Class D continuous power at 2.7 ohms, 40-bit floating-point processing at 96 kHz, and 32-bit internal routing, XPS 16K packs extreme power density in a 2U chassis. Designed for both touring and installed sound systems, XPS is intended for use with high-performance speakers and provides ready-to-use configurations and presets. It can also be used in linear mode with advanced tuning capabilities. Each output features: 4000 ms output delay (1372 m / 4501 ft), EQ Filters, Crossovers, FIR Filters, Multiband Compressor, RMS Limiter, and Thermal limiter. XPS delivers rider-friendly premium sound with full RDNet remote management, large touch interface onboard, exceptional signal/noise ratio, ultra-low distortion, and extreme dynamic range.
Responsive Image

THE POWER TO CHANGE EVERYTHING

THINKING OUT OF THE BOX, AND INTO THE RACK

The XPS Series is the platform for reinventing TT+ AUDIO power management. RDNet-connected amplifiers act as nodes in a networked sound system providing seamless control, routing and grouping of TT+ loudspeakers with virtually no limits. With the trusted RDNet management platform, the system designer now has complete flexibility in choosing externally amplified loudspeakers for its TT+ setup, balancing portability, weight, cabling, and system requirements.

POWER YOU CAN TRUST

Sound quality comes first in XPS. With its extremely high voltage rail design, XPS 16K provides high dynamic power ratings relative to average power output, enabling the channels to deliver high-amplitude long term bursts for massive dynamic headroom. The amplifier’s advanced electronic design has been developed to achieve ultra-low distortion.

FULLY SELF-PROTECTING AND DESIGNED ON AN “AUDIO-AT-ALL-TIMES” PRINCIPLE

XPS is self-protected and run even in challenging conditions. All fault protection features are implemented individually for each channel. The universal power supply adapts to a wide range of AC power, from 110 VAC single-phase to 380 VAC three-phase @50/60 Hz, allowing their use in many different countries and venues.
Responsive Image
Responsive Image

INTUITIVE OPERATION

A large 4.3’’ TFT color capacitive touchscreen provides full operational control of the amplifier. The user interface is clear and easy to navigate, providing large touch buttons and a practical edit knob, with high-contrast menus designed to avoid any ambiguity in very bright, or sunny environments. Proprietary RDNet Over Ethernet Management Network and OSC protocol compatibility allow the sound system engineer to have complete remote control of the amplifier.

FINE TUNING FEATURES

The XPS digital architecture features advanced proprietary FiRPHASE filters, BMC woofer excursion management, fine-tuning algorithms such as BASS Shaper, Air Compensation and Mid-Low Correction. The amplifier includes multiple output delays of up to 4000 ms in increments of 0.10 ms and various filters and crossovers, such as Dynamic PEQ and High/Low-pass filters.



DIGITAL SIGNAL PROCESSING

Combining high-quality AD/DA converters at 96 kHz, two 40-bit floating-point SHARC DSP chips running at 96 kHz for audio processing and two more 32-bit DSP chips for signal routing, the internal DSP board ensures linear and low-noise operation over the entire frequency range.
Responsive Image

The comprehensive digital architecture of the amplifier features multiple inputs and outputs that can be routed easily to suit any project. Analog inputs 3 and 4 can be switched to 4 AES/EBU digital input ports. Each input can be routed to any of the four digital and power outputs. Dante networking delivers completely lossless audio and near infinite signal routing flexibility on a standard IP network.

Responsive Image
1.    Universal Mains PowerCon Plug
      100V - 240V / 50 to 60 Hz

      GPIOs
2.   Fault GPO
3.   2 Programmable GPIO

      LAN PORTS
4.   LAN1 / LAN2 RJ45 Network Connections

      INPUTS
5.   4 Analog XLR Inputs (A1/A4)
6.   4 Digital AES/EBU Inputs (A3/A4)
      LAN3 / LAN4
7.   Network + Control

      AES/EBU LINK
8.   4 Digital AES/EBU Outputs (O1/O4)

      OUTPUTS
9.   2 + 2 SpeakOn Power Outputs
Responsive Image

RDNet NETWORKED SYSTEM MANAGEMENT

RDNet is an advanced platform for integrated monitoring and management of sound systems - from small live and installed setups to massive arena systems. With a robust networked architecture, RDNet combines system control, line array design, and detailed audio measurements into a powerful software solution. Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups, with seamless integration of self- and externally-powered systems. The platform offers comprehensive DSP control of compatible devices, with flexible configuration tools for efficient system tuning. Users gain real-time access and oversight of crucial parameters, such as volume levels, system health, and environmental adjustments, all from a centralized interface.

Part number

12100037
XPS 16K
EU, EAN 8024530019952

12100074
XPS 16K
US, EAN 8024530020385

12100076
XPS 16K
UK, EAN 8024530020842

Amplifier specifications
Amplifier Class
D
Output Power (EIAJ 8:32 all channels driven)
4 x 4000 W @ 2.7 ohm
4 x 2600 W @ 4 ohm
4 x 1400 W @ 8 ohm
Frequency Response (-3dB)
20 Hz ÷ 23000 Hz
SNR Analog inputs (unweighted)
>111 dB
SNR Digital inputs (unweighted)
>115 dB
Crosstalk
<70 dB
Distortion (THD+N) (20 Hz ÷ 20000 Hz,1000 W @ 4 ohm)
<0.2 %
Gain (linear mode @ 0 dB)
32 dB
Damping factor (@ 4 ohm, 20 Hz ÷ 1500 Hz)
>95
Max burst length (@ 50 Hz, CF = 7 dB, 4 ohm, 1% THD+N)
200 ms
Input section
Total number of inputs
8
Line inputs
4
Line connectors
XLR
Digital inputs
4
Digital connectors
XLR
Digital type
AES/EBU
General Purpose Inputs (GPI)
2
Programmable GPI
Yes
Photo-coupled GPI
2
Output section
Signal output number
4
Signal output connectors
XLR
Power output connectors
Speakon
General Purpose Outputs (GPO)
3
Programmable GPO
Yes
Processing
DSP
2 SHARC, 40-bit floating point, 96 kHz
2 ADAU, 32-bit fixed point, 96 kHz
EQ Filters
Peaking | HI/LO-shelving | HI/LO-pass (Butterworth, Linkwitz-Riley, Bessel)
Advanced algorithms
FiRPHASE technology | BASS shaper | air compensation | mid-low correction | driver excursion control | dynamic PEQ | multi-band compressor | pilot tone detection | backup recovery strategy | impedance load measurement
Compressors
RMS limiter | dynamic compressor | power limiter | thermal compressor
Delay
0 ÷ 4000 ms (each channel)
Tone controls
Yes
High-pass filter
10 Hz ÷ 1000 Hz
Crossover
2500 ÷ 3500 Hz
Automatic gain control
Yes
Configuration and control
Configuration
Front panel touch screen, PC Software
Network
Gigabit ethernet
RCF speakers presets
Yes
Priority
Yes
Protocols for system integration
Proprietary OSC based protocol, Q-SYS
RDNet
Yes
Protections
Cooling
Forced
Short circuit
Yes
Thermal
Yes
DC
Yes
Fuses
Yes
VHF (Very High Frequencies)
Yes
Operating conditions
Temperature range - Continuous operation
-5°C ÷ +40°C / +23°F ÷ +104°F
Temperature range - Reduced output power
-5°C to +50°C / +23°F to +122°F
Fan noise idle < (dBA)
<35 dBA
Fan noise max < (dBA)
<64 dBA
Power requirement
Operating voltage
90-240 V~ 50/60Hz
Nominal current AC @ 100-120 V
30 A
Nominal current AC @ 220-240 V
16 A
Stand by power consumption
20 W
Idle power consumption
90 W
Power consumption (MAX)
5800 W
Main fuse
Internal
Standard compliance
Safety agency
CE compliant, UL 62368-1, 3rd Ed.
CSA C22.2 No. 62368-1:19, 3rd Ed.
Physical specifications
Cabinet/Case Material
Metal
Handles
2 metal handles for rack mount
Color
Black - RAL 9005
Rack mounting
19", 2U
Size / Weight
Height
88.7 mm / 3.49 inches
Width
482 mm / 18.98 inches
Depth
482.4 mm / 18.99 inches
Weight
15 kg / 33.07 lbs
Shipping information
Package Height
150 mm / 5.91 inches
Package Width
580 mm / 22.83 inches
Package Depth
600 mm / 23.62 inches
Package Weight
18 kg / 39.68 lbs
