GTX 7C

COMPACT CARDIOID LINE ARRAY

140 dB max SPL

120° x 10° Linear Resistive Waveguide

22 dB rear attenuation (average)

Shock-absorbing, polyurea-coated PU Enclosure

2 x 7” front and 2 x 5.5” rear neodymium woofers

3.0” titanium dome, neodymium compression driver

2 x SpeakON STXX IP54 heavy-duty metal connectors

Designed to operate with XPS 16K amplifier (8 modules per amp unit)

TOURING

NEW

AVAILABLE Q1 2026

PRELIMINARY

TOURING

GTX 7C

COMPACT CARDIOID LINE ARRAY

140 dB max SPL

120° x 10° Linear Resistive Waveguide

22 dB rear attenuation (average)

Shock-absorbing, polyurea-coated PU Enclosure

2 x 7” front and 2 x 5.5” rear neodymium woofers

3.0” titanium dome, neodymium compression driver

2 x SpeakON STXX IP54 heavy-duty metal connectors

Designed to operate with XPS 16K amplifier (8 modules per amp unit)

NEW

AVAILABLE Q1 2026

PRELIMINARY

The GTX 7C is an advanced line array module engineered for precise, high-performance sound reinforcement in demanding applications. Featuring digitally controlled directivity, it surpasses traditional cardioid solutions by integrating advanced acoustical design with active DSP optimization. The front and rear speakers are independently powered through separate audio channels, with extensive digital processing provided by the XPS power amplification platform. Each module achieves an average rear attenuation of 22 dB up to 600 Hz and a maximum SPL of 140 dB. An onboard, passive, phase-optimized crossover at 900 Hz ensures seamless frequency distribution while FiRPHASE and BMC processing deliver precise attenuation in a broader frequency range than competing systems. Available in full black or white coating.

HIGH-PERFORMANCE ACOUSTIC DESIGN

GTX 7C incorporates a Linear Resistive Waveguide to deliver efficient driver loading and precise pattern control. Its phase-coherent symmetrical arrangement of the cone transducers ensures optimal time alignment. At the same time, the onboard passive crossover network is finely tuned to maximize dynamic response across frequency bands and optimize phase. Leveraging FiRPHASE optimization via the XPS amplifier’s internal DSP, the transducers' radiation combine and emerge as a single 0º linear phase wavefront. This significantly minimizes off-axis distortions, enhancing clarity and delivering outstanding performance over the entire frequency range.

ACTIVE CARDIOID TECHNOLOGY

While the physical configuration of woofers in traditional cardioid designs provides basic rear sound cancellation, it is often constrained by specific frequency limitations and relies on a passive approach—using a single or pair of transducers driven from the same audio channel.

In contrast, TT+ Audio’s active cardioid systems feature independently driven front and rear speakers with extensive DSP capabilities. This active configuration provides several key advantages:

Ideal Primary Cardioid Attenuation
Because front and rear transducers are driven separately, speaker placement can be optimized to achieve the best possible acoustic cardioid cancellation.

Precise Rear Wave Rejection
Speakers are digitally and dynamically aligned to perfectly cancel rear wave propagation, achieving up to 30 dB front-to-rear rejection levels.

Independent Limiters and Protections
This ensures maximum output with minimal distortion and allows each driver to operate at its optimal performance level.

Wider Frequency Range of Cardioid Radiation
By adopting FiRPHASE technology, the cardioid effect is extended across a wider frequency range while achieving 0º linear phase response.

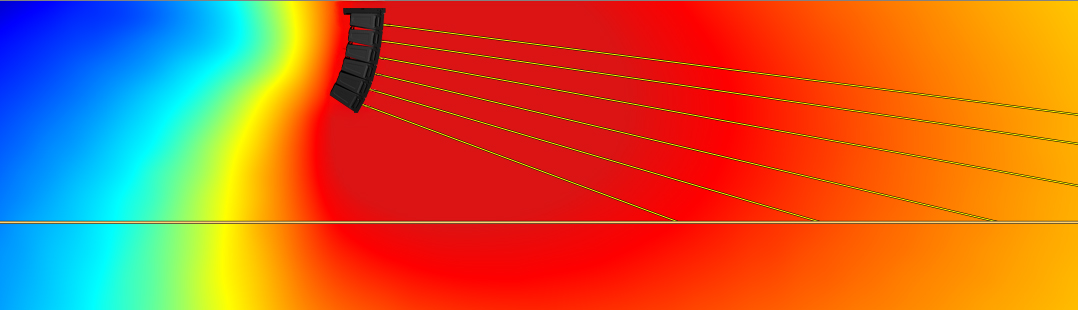

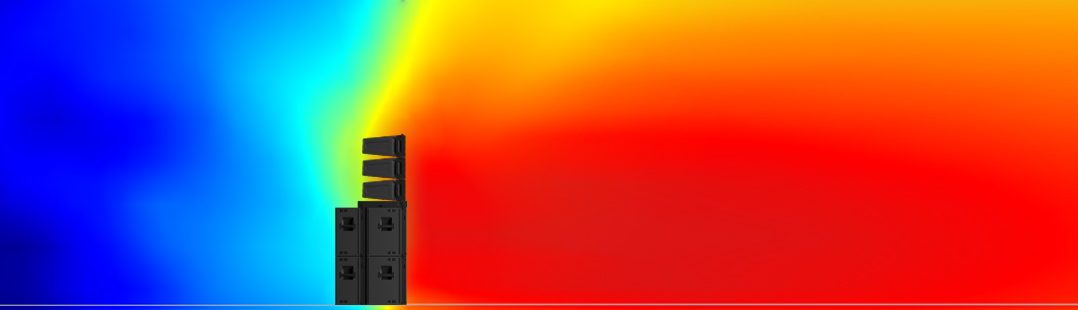

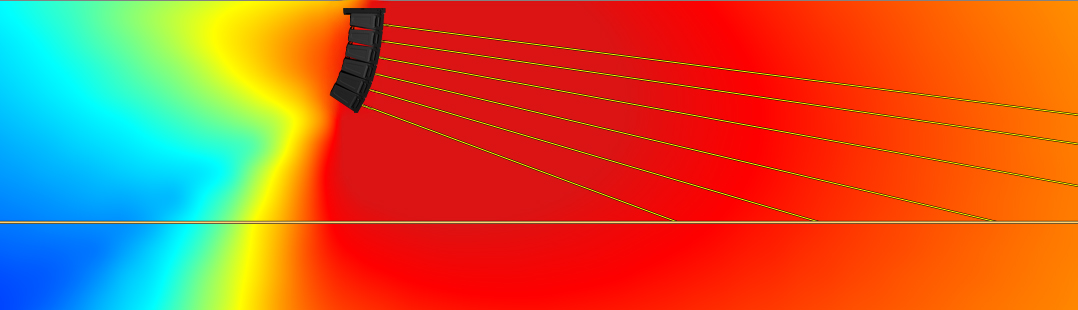

FORWARD-THINKING: PUSHING SOUND WHERE IT MATTERS

Front-to-rear rejection of 20 to 30 dB, minimizing unwanted noise on stage.
Decreased interference with reflective surfaces like walls and buildings.
Reduced microphone bleed for cleaner stage sound.
Wider frequency range attenuation, powered by FiRPHASE and BMC processing.
Independent excursion limiters and protections, ensuring maximum output and system reliability.

PRECISION TRANSDUCERS

At TT+ AUDIO, we maintain full control over the design, engineering, and manufacturing of each component, subjecting them to rigorous testing—including 200 hours of continuous musical signals under extreme conditions.

TT+ Audio adopts large format compression drivers for the HF of our products, engineered to withstand lower crossover points than our competitors. This approach offers several advantages:

The overall efficiency of the system is improved, resulting in higher maximum SPL.
The range controlled by the horn directivity is extended.
Clearer vocal reproduction due to the crossover point.
Rear attenuation is improved and distorsion at MF is reduced.

Linear Resistive Waveguide

Our proprietary Linear Resistive Waveguide (LRW) provides broadband directivity and a flat hemicylindrical wavefront. The crossover operates before rear attenuation, ensuring a smoother transition with the woofers’ radiation.

HIGH FREQUENCY

The 4-inch titanium dome compression drivers, equipped with high-current neodymium magnets, are designed to fully leverage the remarkable capabilities of the TRW-4PATH waveguide. As a result, the GTX 7C 120° x 10° coverage is finely matched with the output of its woofers for perfect phase coherence.

ENCLOSURE AND RIGGING HARDWARE

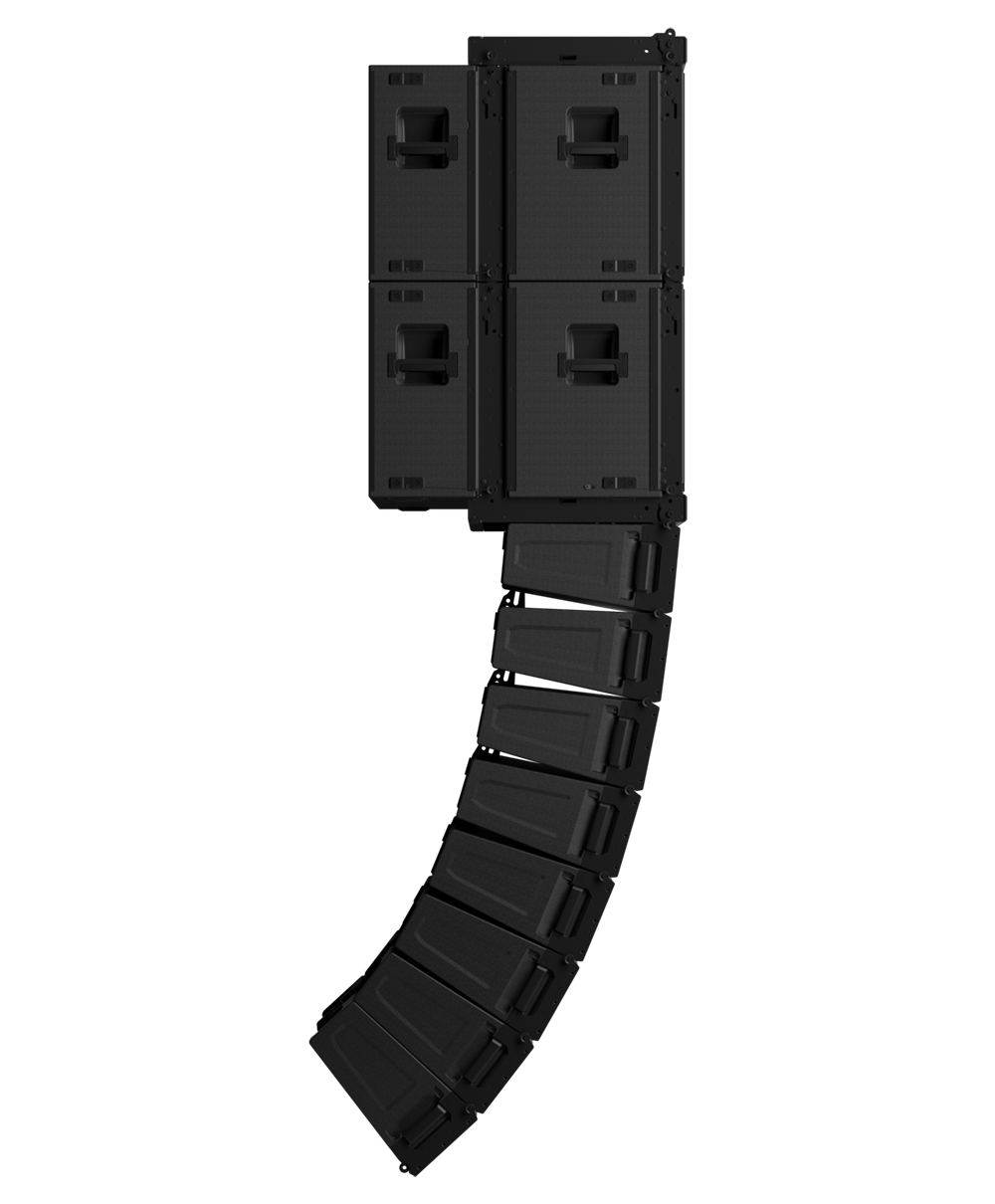

Housed in a shock-absorbing, polyurea-coated enclosure, the GTX 7C features two SpeakON STXX Series 4-pole IP54 heavy-duty metal connectors. It supports cascading up to four modules with two XPS 16K amplifier channels. Designed for unparalleled adaptability, it excels in acoustically challenging environments. Featuring optimized hardware for suspension, two rear and two side aluminum handles with rubber handgrips ensure easy handling.

GTX 16C compatible suspension fittings

DOWNLOAD BROCHURE

Part number

13000863
GTX 7C

Specifiche acustiche

Risposta in frequenza (-10dB)

50 Hz - 20000 Hz

Max SPL @ 1m

140 dB

Angolo di copertura orizzontale

120°

Angolo di copertura verticale

10°

Sezione di potenza

Amplificazione

Bi-Amp

Impedenza nominale LF

8 ohm

Nominal Impedance LF+HF Front (ohm)

8 ohm

Crossover Frequencies

800Hz

Impedenza nominale HF

8 ohm

Nominal Impedance LF Rear (ohm)

8 ohm

Amplificatori raccomandati

XPS 16K, XPS 16KD

Trasduttori

Driver a compressione

1 x 1.4'' neo, 3.0'' v.c

Woofer

2 x 7.0'' neo, 2.0'' v.c

Rear Woofer

2 x 5.5'' neo, 2.0'' v.c

Sezione Input/Output

Connettori in ingresso

speakON® NL4 STXX

Connessioni di uscita

speakON® NL4 STXX

Conformità agli standard

Standard di sicurezza

CE compliant

Specifiche fisiche

Materiale Cabinet/Case

Structural Polyurethane

Hardware

Array fittings

Maniglie

1 x side, 2 rear

Griglia

Steel with clothing

Colore

Black

Dimensioni / Peso

Altezza

248 mm / 9.76 inches

Larghezza

595 mm / 23.43 inches

Profondità

433 mm / 17.05 inches

Peso

24.5 kg / 54.01 lbs

Informazioni di spedizione

Altezza imballaggio

535 mm / 21.06 inches

Larghezza imballaggio

655 mm / 25.79 inches

Profondità imballaggio

390 mm / 15.35 inches

Peso imballaggio

27.3 kg / 60.19 lbs
